Description

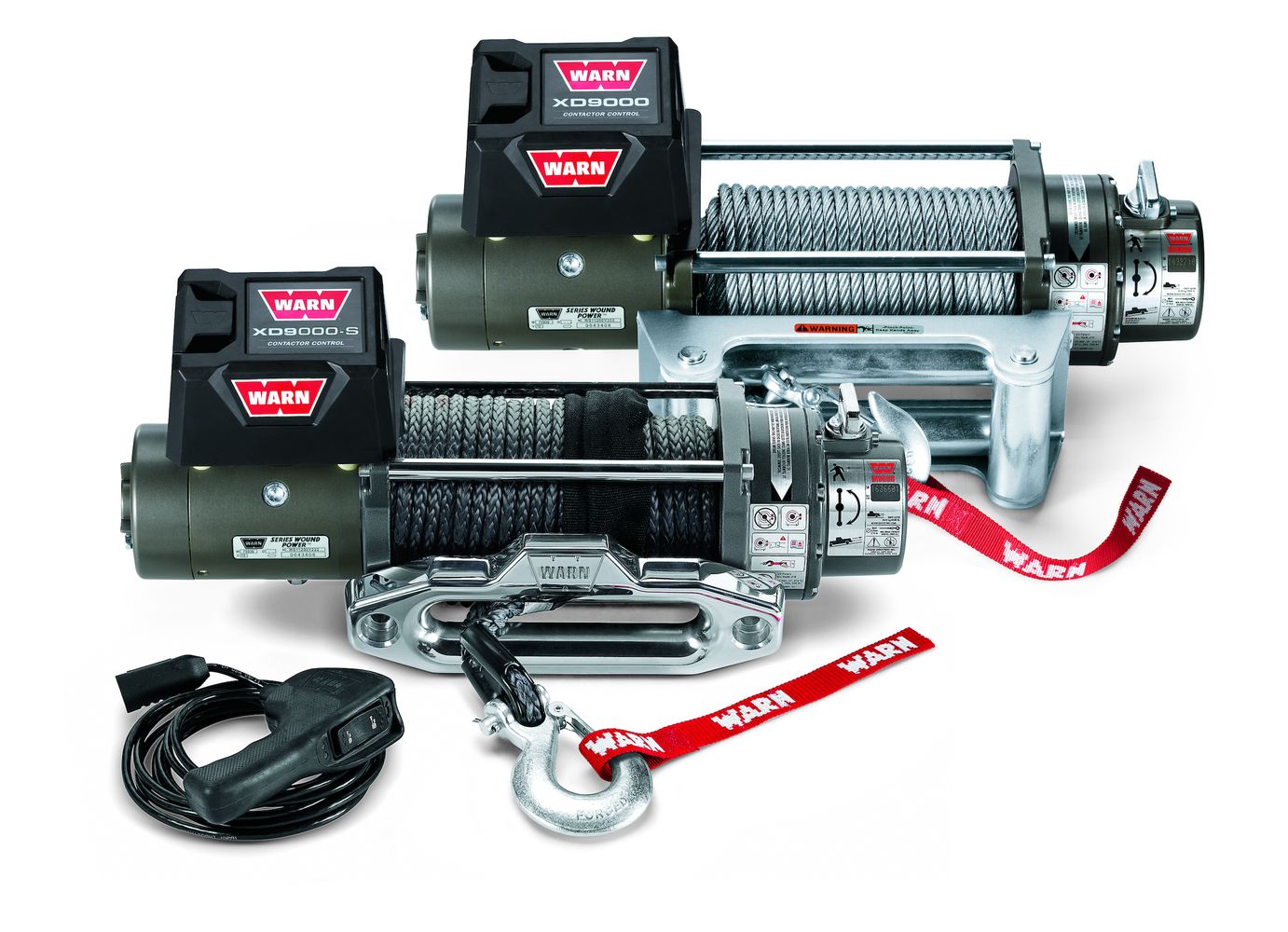

Long time best selling winch Long-time best seller. A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100′ of 5/16″ wire rope. Backed by the Warn Limited Lifetime Warranty. Low-profile design and separate control box allows for a wide range of mounting options Exclusive brake design provides superior control while winching Durable 3-stage planetary geartrain for smooth, reliable, operation Series-wound, high-speed motor provides fast line speed and strong pulls Chip-resistant, powder-coated finish Remote control with 12′ (3.7m) lead.Durable 5/16″ (8mm) diameter galvanized steel wire rope.

XD9000 SPECS
Rated line pull: 9,000 lbs., (4080 kgs.) single-line Motor: Series Wound: 12V 4.6 hp, 24V 2.5 hp Electrical controls: Contactor Remote Control: Remote switch, 12′ (3.7m) lead Gear Train: 3-Stage Planetary Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear Brake: Automatic mechanical cone Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)Weight: 78 lbs. (35kgs.)Wire rope: 100′, 5/16″ dia. (30m, 8mm)Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching Battery leads: 2 gauge, 72″ (1.83m) Finish: Argent gray powder coat

12V DC PERFORMANCE SPECS
Line PullLbs.(Kgs.) Line SpeedFT./min(M/min.) MotorCurrent Pull by layerlayer/Lbs(Kgs.)0 38 (11.58) 56 amps 1/9000 (4082)2000 (910) 15 (6.8) 161 amps 2/8190 (3715)4000 (1810) 10.3 (3.14) 252 amps 3/7500 (3402)6000 (2720) 7.5 (2.29) 332 amps 4/7010 (3180)8000 (3630) 5.1 (1.55) 423 amps 9000 (4080) 3.9 (1.19) 478 amps

24V DC PERFORMANCE SPECS
Line PullLbs.(Kgs.) Line SpeedFT./min(M/min.) MotorCurrent Pull by layerlayer/Lbs(Kgs.)0 22.5 (6.86) 46 amps 1/9000 (4082)2000 (910) 14.5 (4.42) 93 amps 2/8190 (3715)4000 (1810) 11 (3.35) 131 amps 3/7500 (3402)6000(2720) 9.1(2.77) 169 amps 4/7010(3180)8000 (3630) 7.9 (2.41) 207 amps 5/6570 (2980)9000 (4080) 7.4 (2.26) 226 amps
Above performance specs are based on first layer of drum
